12 Core FTTH Drop Cable Single Mode Figure 8 Steel Wire Strength

Name: 12 Core FTTH Drop Cable Single Mode Figure 8 Steel Wire Strength
Brand: TW-SCIE
Price: 0.02 USD

China 12 Core FTTH Drop Cable Single Mode Figure 8 Steel Wire Strength wholesale

Brand Name : TW-SCIE

Model Number : GJYXCH

Certification : CE, ROHS, REACH, SGS, ISO

Place of Origin : China

MOQ : Negotiable

Price : USD0.02-0.03/m

Payment Terms : L/C, T/T

Delivery Time : 10 working days

Packaging Details : wooden reel

Product name : Figure-8 FTTH Drop Cable

Application : FTTH,FTTH FTTB FTTX Network,telecommunication,Telecom

Fiber : G652D, G657A1, G657A2

Fiber Count : 12 core

Strength Member : Steel Wire

Outer Jacket : LSZH

Contact Now

12 Core Single Mode Figure-8 FTTH Drop Cable

1. Description

Figure-8 drop cable is a self-supporting cable. Figure-8 drop cable is fixed on a steel wire, which is very convenient and economical for outdoor applications. This type of fiber optic cable is fixed on a steel wire. The typical number of optical fibers of the Figure-8 floor-standing cable is 2 ~ 48. The tensile load is usually 6000 Newtons.

2. Features

Compact, soft, flexible, easy to install

3.Specifications
3.1 Optical Characteristics

Fiber Type	Attenuation		Overfilled launch Bandwidth	Effective Modal Bandwidth	10GB/S Ethernet link length	Min Bending Radius
Conditions	1310/1550nm	850/1300nm	850/1300nm	850nm	850nm
Unit	dB/km	dB/km	MHZ.km	MHZ.km	m	mm
G652D	0.36/0.22					16
G657A1	0.36/0.22					10
G657A2	0.36/0.22					7.5
50/125		3.0/1.0	≥500/500			30
62.2/125		3.0/1.0	≥200/500			30
OM3		3.0/1.0	≥1500/500	≥2000	≥300	30
OM4		3.0/1.0	≥3500/500	≥4700	≥550	30
B1-OM3		3.0/1.0	≥1500/500	≥2000	≥300	7.5
B1-OM4		3.0/1.0	≥3500/500	≥4700	≥550	7.5

3.2 Structure and technical specification

Fiber Count	Cable Diameter (mm)	Cable Weight (kg/km)	Tensile Strength (N/100mm)		Crush Resistance (N/100mm)
Fiber Count	Cable Diameter (mm)	Cable Weight (kg/km)	Short Term	Long Term	Short Term	Long Term
1-4	5.2*2.0	18	600	300	2200	1000
6-12	3.0*9.0	27	1200	600	1100	500

Note : This datasheet can only be a reference, but not a supplement to the contract. Please contact the sales for the details.

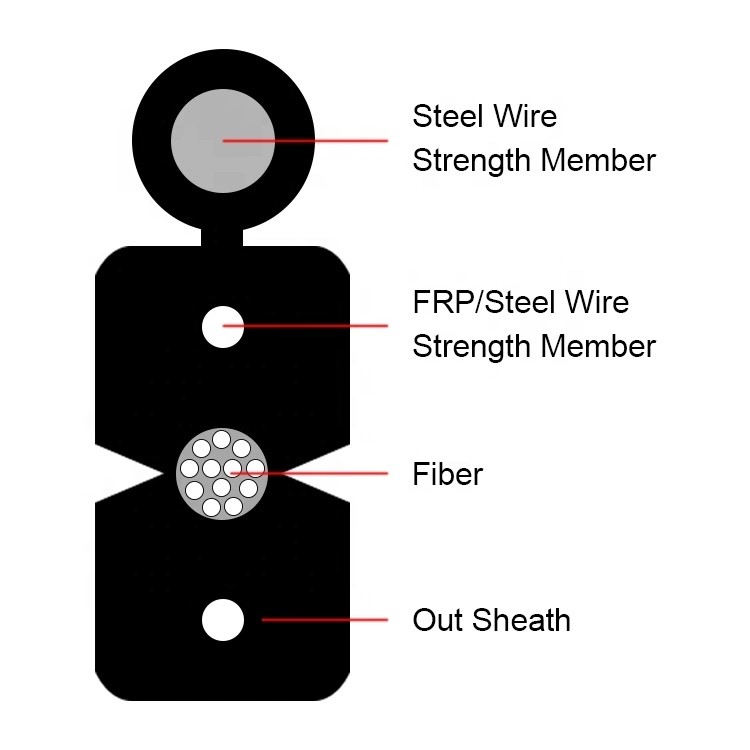

4. Structure and Product Pictures

12 Core FTTH Drop Cable Single Mode Figure 8 Steel Wire Strength
