OPGW Optical Ground Wire 48 Core Outdoor Aerial Fiber Optic Cable
The central Al-covered steel tube is surrounded by single or double layers of aluminum clad steel wires(ACS) or mix ACS wires and aluminum alloy wires. Al-covered Stainless Steel tube design increases the cross section of AL, to reach a better fault current and lightning resistance performance. Apply to the transmission line which requires small diameter and large fault current.
Features
1.Large diameter, large fiber capacity
2.The structure is stable and the reliability is high
3.Excellent capability against side and outstanding short circuit current capacity
4.The optimum stranding design can obtain the surplus length of secondary optical fiber
5.The number of strands can be designed in two or three layers
6.Match with common ground wires
Speicfication
| |
Structure
| Max fiber count | AS sectional area | Diameter (mm) | Weight (kg/km) | RTS (kN) | 20°C DC resistance (O/km) | 40-200°C Allowable short circuit current capacity(KA2.S ) |
| OPGW-48B1.3-90- [112;45] | 1/2.6/20AS+4/2.5/20AS+ | 48 | ≈90 | 13.2 | ≤641 | ≥112 | ≤0.98 | ≥45 |
| 11/2.8/20AS,Unit2/2.5 |
| OPGW-48B1.3-90- [57;67] | 1/2.6/40AS+4/2.5/40AS+ | 48 | ≈90 | 13.2 | ≤457 | ≥57 | ≤0.52 | ≥67 |
| 11/2.8/40AS,Unit 2/2.5 |
| | | | | | | | | |
Note : This datasheet can only be a reference, but not a supplement to the contract. Please contact the sales for the details.

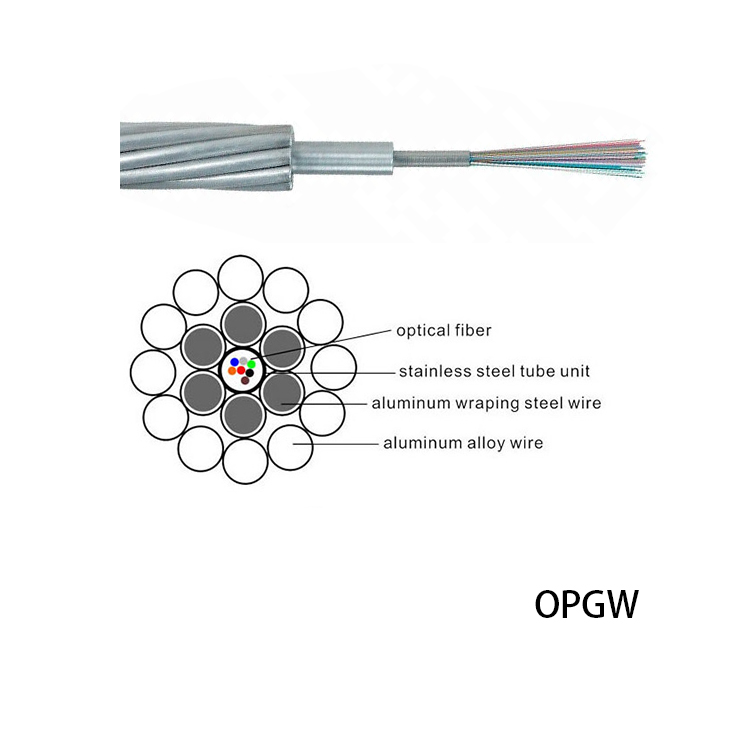

Structure and Product Pictures
Packing and Shipping
Cable is supplied in lengths as specified in PI or as requirement. Each length will be shipped on a separate iron-wooden drum. The minimum barrel diameter of the drum will not be less than 30 times the cable diameter.
The cable ends will be sealed with plastic protection caps to prevent water penetration. The ends will be easily accessible for testing. A final inspection test report with attenuation performance data for each fiber is attached inside the drum.
Our Company
Dongguan TW-SCIE Co., Ltd. is a high-tech enterprise specializing in the research and development, production, processing, sales and network engineering of optical fiber communication products, and has independent import and export rights. The company has a group of loyal, dedicated, wise, strong professional and technical talents, committed to tracking the world's advanced optical communication products development and application. The company R & D, production, management of the main products are optical fiber, optical cable, optical transceiver, optical MODEM and so on. Products are widely used in communication, electric power, railway, military and other related departments, exported to France, India, Singapore, Malaysia and other countries.
F A Q
Q1: Where is your factory ?
A1: Our factory is located in DONGGUAN City, GUANGDONG Province, China.
Q2: How long has your company been doing this?
A2: More than 20 years.We are not only produce fiber optical cable but also produce optical fiber and related tools .
Q3:How about the cable's quality?
A4: Our factory is approved by ISO9001 quality management system and including STARF,CE,CPR,TLC certifications at list.We have a series of equipment and instruments to make sure reliable quality of our products.
Q4: Can you produce cable as our requirements?
A6: Of course .We can supply different types of products according to your requirements with reasonable prices .
Q5:Do you accept the OEM order and how many is the MOQ?
A7:Yes,we warmly welcome your OEM order.To achieve customer's satisfaction,we accept sample order, even one Piece.
Dear Customer,
Thank you for choosing our company. Your choice is our direction and motivation.
TW-SCIE will continue offers her customers Top Quality; Technical expertise; Reasonable Prices and Short delivery Time. These qualities have contributed to the growing number of satisfied customers.
Your sincere,
TW-SCIE
WE LOOK FORWARD TO HEARING FROM YOU !
|
|

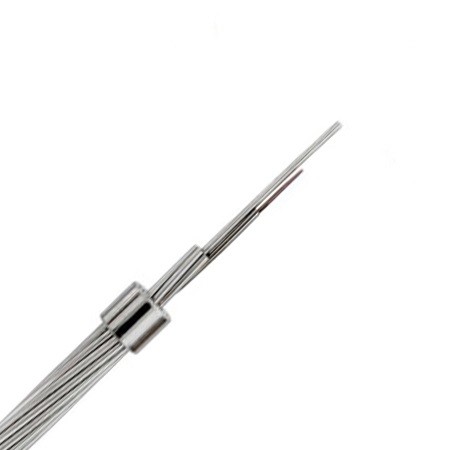

OPGW Optical Ground Wire 48 Core Outdoor Aerial China Fiber Optic Cable Images
|
