Duct / Burial Installation Outdoor Fiber Optic Cable PSP Enhancing Moisture Proof

Name: Duct Burial Installation Outdoor Fiber Optic Cable PSP Enhancing Moisture Proof
Brand: TW-SCIE
Price: 1 USD

China Duct / Burial Installation Outdoor Fiber Optic Cable PSP Enhancing Moisture Proof wholesale

Brand Name : TW-SCIE

Model Number : GYXTW

Certification : ROHS REACH SGS ISO

Place of Origin : DongGuan TW

MOQ : Negotiable

Price : Negotiable

Payment Terms : L/C, T/T, Western Union,MoneyGram

Supply Ability : 200km/Day

Delivery Time : one week

Packaging Details : Customize

Outer sheath material : MDPE / HDPE

Outer Sheath Color : Black

Loose tube material : PBT or Jelly

Single Armour Material : Corrugated aluminium tape

Operating Temperature : -40 Degree ~ +60 Degree

Waterblocking Material : Water Blocking Tape or Filling Compound

Brand Name of Fiber : Corning, Yofc, Draka, Fujikura

installation methods : Duct & Burial

Contact Now

Cable 4f 50/125 mm GYXTW with Unitube Light-Armored Structure

·Description

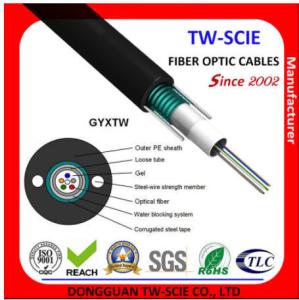

The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of PSP longitudinally. Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape. The cable is completed with a polyethylene (PE) sheath.

·Characteristics
· Good mechanical and temperature performance
· High strength loose tube that is hydrolysis resistant
· Special tube filling compound ensure a critical protection of fiber
· Crush resistance and flexibility
· PSP enhancing moisture-proof
· Two parallel steel wires ensure tensile strength
· Small diameter, light weight and friendly installation
· Long delivery length
·Standards
GYXTW cable complies with Standard YD/T 769-2003.
·Optical Characteristics

		G.652	G.655	50/125μm	62.5/125μm
Attenuation (+20ºC)	@850nm			≤3.0 dB/km	≤3.0 dB/km
	@1300nm			≤1.0 dB/km	≤1.0 dB/km
	@1310nm	≤0.36 dB/km	≤0.40 dB/km
	@1550nm	≤0.22 dB/km	≤0.23dB/km
Bandwidth (Class A)	@850nm			≥500 MHz·km	≥200 MHz·km
Bandwidth (Class A)	@1300nm			≥1000 MHz·km	≥600 MHz·km
Numerical Aperture				0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelengthλcc		≤1260nm	≤1480nm

·Technical Parameters

Cable Type	Fiber Count	Cable Diameter mm	Cable Weight kg/km	Tensile Strength Long/Short Term N	Crush Resistance Long/Short Term N/100mm	Bending Radius Static /Dynamic mm
GYXS/GYXTW-2~12	2~12	10.0	105	600/1500	300/1000	10D/20D
GYXS/GY XTW-2~12	2~12	10.6	124	1000/3000	1000/3000	10D/20D
GYXS/GY XTW-14~24	14~24	12.5	149	1000/3000	1000/3000	10D/20D
GYXS/GY XTW-26~36	26~36	14.0	190	1000/3000	1000/3000	10D/20D
GYXS/GY XTW-38~48	38~48	15.0	216	1000/3000	1000/3000	10D/20D

Storage/Operating Temperature : -40ºC to + 70ºC

Optic Cable Technical data:
Fiber Num.	Outer diameter (mm)	Weight (kg/km)	Min.Bending radius(mm)		Tension (N)		Crash loading (N/100mm)
			Static	Dynamic	Short term	Long term	Short term	Long term
2-12	8.9	90	10 times O.D.	20 times O.D.	1500	600	1000	300
14-24	10.2	110
